Dr Blade applicator – Coating Device – Rod shaped
- High-precision fixed gap applicator with 4 coating thicknesses per side
- Available in 80 mm and 120 mm coating widths
- Stainless-steel construction for durability and accuracy
- Suitable for thin-film coatings from 5 μm to 200 μm
- Ideal for R&D labs, slurry coating, and small-batch film preparation
Product Description
The Sides Fixed Gap Film Applicator is a precision stainless-steel tool designed for accurate and repeatable thin-filmcoating. Each side features four fixed gaps, allowing precise control of coating thickness. Ideal for laboratories, small-batch production, and R&D applications, this applicator ensures uniform films evenwith high-viscosity slurries. Available in 80 mm and 120 mm widths,it delivers reliable performance for a wide range of coating tasks.
Width and Thickness Options
- Coating Widths: 80 mm / 120 mm
- Coating Thickness per Side (4 Gaps): (5 μm / 10 μm / 15 μm / 20 μm) or (50 μm / 100 μm / 150 μm / 200 μm)
|
Specification |
Option 1: 80 mm Applicator |
Option 2: 120 mm Applicator |
|
Material |
Stainless Steel |
Stainless Steel |
|

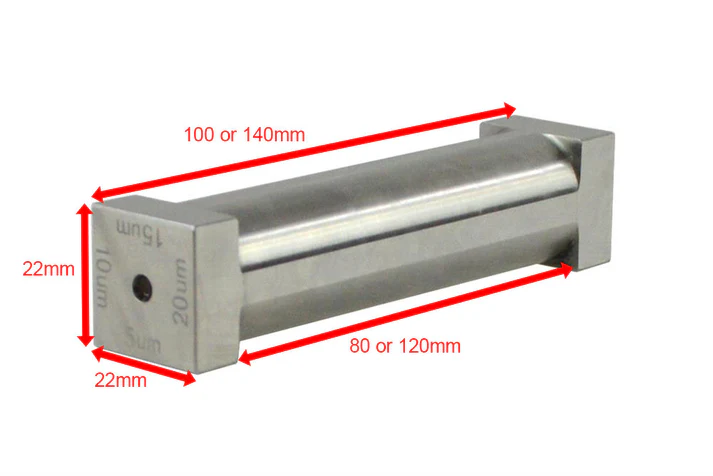

Length |
100 mm |
140 mm |
|
Coating Width |
80 mm |
120 mm |
|
Coating Thickness (4 gaps each side) |
5 μm / 10 μm / 15 μm / 20 μm or 50 μm / 100 μm / 150 μm / 200 μm |
5 μm / 10 μm / 15 μm / 20 μm or 50 μm / 100 μm / 150 μm / 200 μm |
|
Customization |
Custom length up to 120 mm available |
Custom length up to 120 mm available |
