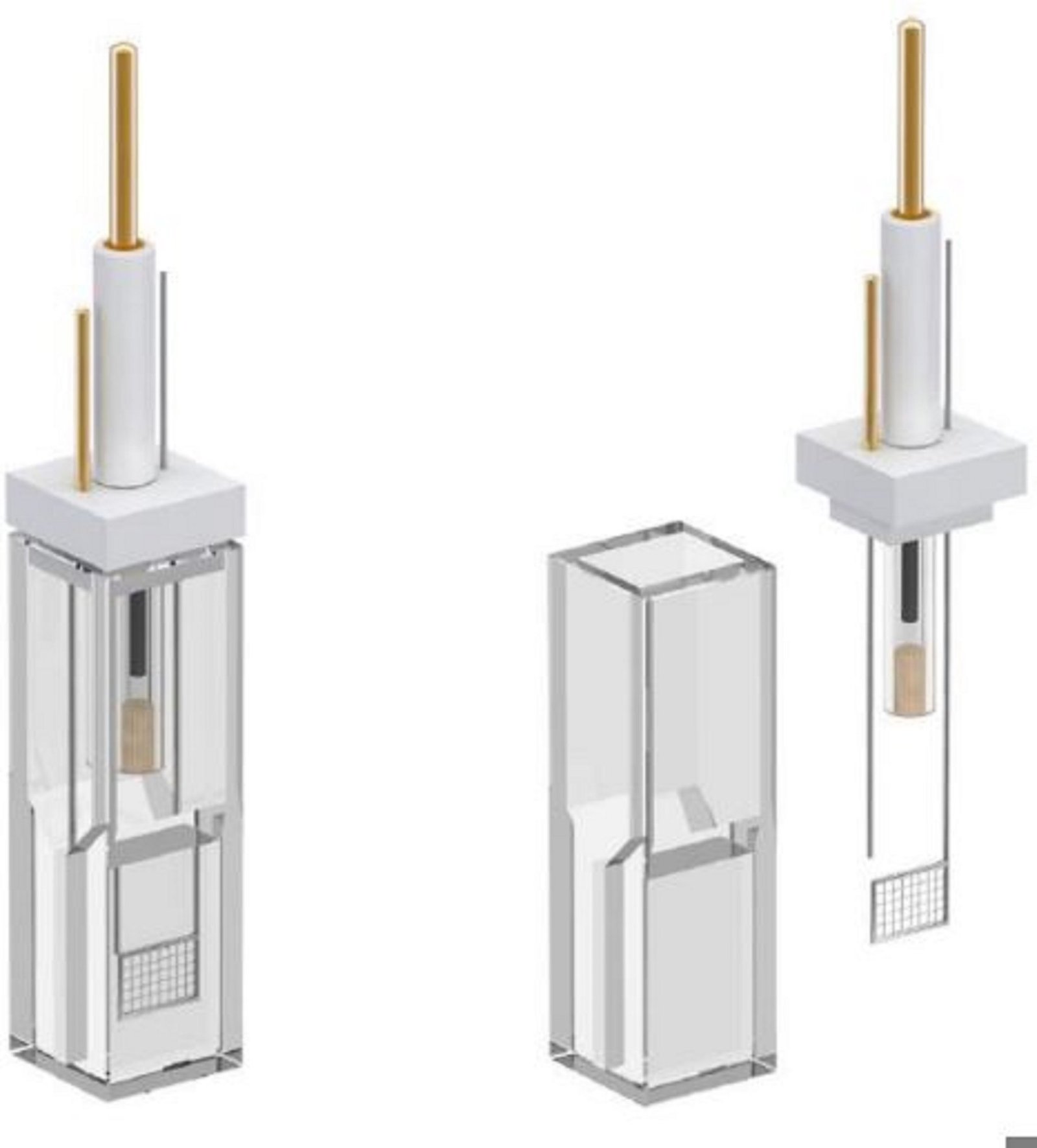

Quartz Spectroelectrochemical Cell

Quartz Spectroelectrochemical Cell

  • Fully polished quartz cell body with >95% light transmittance
  • PTFE lid for secure, chemically resistant sealing
  • Compact cell dimensions: 12 mm × 12 mm
  • Ag/AgCl reference electrode, Ø 3.8 mm
  • Platinum mesh counter electrode, 6 × 7 mm
  • Platinum wire working electrode, Ø 0.5 mm
SKU MTXC09-1 Categories , ,

Product Description:

The Spectroelectrochemical Cell, made from high-quality quartz, combines optical and electrochemical techniques for detailed analysis of reaction mechanisms. It allows real-time monitoring of electrochemical processes while capturing spectroscopic data. Perfect for applications requiring precise, multi-dimensional measurements in research and development.



Parameter​

Specification​

Path Length​

1.5 mm​

Window Material​

Quartz glass (190–2500 nm)​

Light Transmittance​

>95%​

Cell Body​

Fully polished quartz​

Lid Material​

PTFE​

Overall Dimensions​

12.5 × 12.5 × 42 mm (H)​

Internal Cell Size​

12 × 12 mm​

Reference Electrode​

Ag/AgCl, Ø 3.8 mm​

Counter Electrode​

Pt mesh 6 × 7 mm, wire Ø 0.5 mm​

Working Electrode​

Pt wire Ø 0.5 mm (52 mm exposed)​

Optional Electrodes​

Glassy carbon / Gold disc, Ø 3 mm (optional)​
