Platinum Foil/sheet/plate Counter Electrode – B10

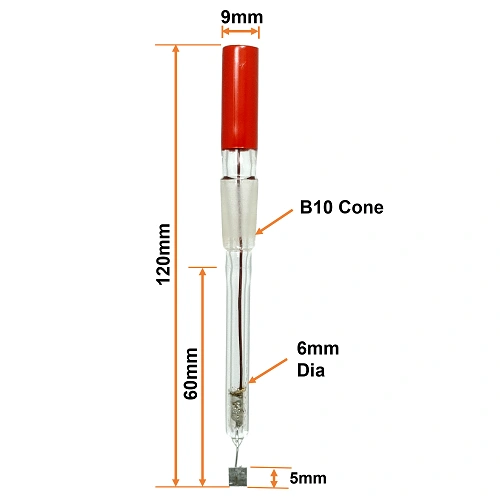

This electrode contains a thin square sheet of platinum mounted in a glass tube with a platinum wire. This electrode is used as a counter electrode in most of the electrochemical measurements. The standard ground joint 10/19 of the electrode, enables easy assembly with MTX electrochemical cell tops.
This electrode contains a thin square sheet of platinum mounted in a glass tube with a platinum wire. This electrode is used as a counter electrode in most of the electrochemical measurements. The standard ground joint 10/19 of the electrode, enables easy assembly with MTX electrochemical cell tops.
Technical specification
| Material | Pt |
| Purity | 99.95% |
| Shaft material | Borosilicate glass |
| Electrode Plug-in-head | Compatible with banana connector pin (4mm) |
| Standard Ground Joint sleeve | 10/19 |
| Shaft diameter (Top) | 9mm |
| Shaft diameter (Bottom) | 6mm |
| Total Length (approx.) | 120mm |
| Pt-foil dimension | 5mmX5mm |
| Pt-foil thickness | 0.14mm |
