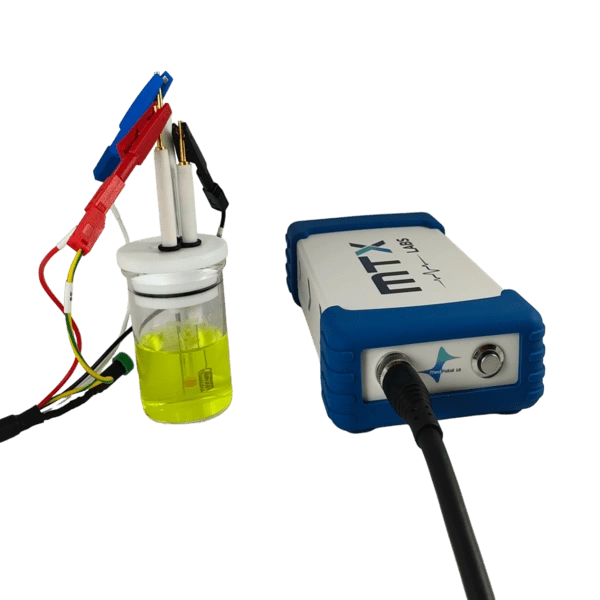

Handheld Potentiostat, Electrochemical Analyzer (MedPstat 1.0 Advance -100mA)

  • Handheld, Portable, Most Affordable & Highly Precise Potentiostat
  • Applied Potential Range: ±2.4 V
  • Max Current Range: 100 mA
  • USB Communication
  • Software for PC Data acquisition & plotting
Categories ,

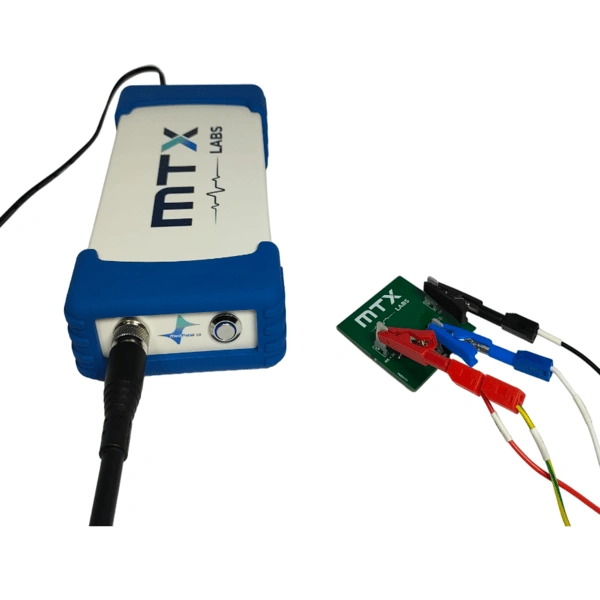

MedPstat 1.0 Advance is the most cost-effective Electrochemical Analyzer, Handheld / Portable, Affordable, and precise Potentiostat, with a wide range of ±2.4 V, 100 mA. It is optimal for electrochemistry learning and the best for any electrochemistry research applications. It comes with high-quality dummy cells for learning/calibration applications and software for PC data acquisition and plotting.

Detailed Specification

Parameter Values
Electrochemical Methods CV, LSV, ChronoAmp, OCP, DPV, SWV
Channels Per Unit 1
Applied potential range ±2.4 V
Applied Potential Accuracy 0.1% of the setpoint, 1mV Max
Applied Potential Resolution 76 µV
Measured Potential Accuracy 0.1% of the setpoint, 1mV Max
Measured Potential Resolution 156 µV
Compliance Voltage ±8 V
Maximum Current 100 mA
Current ranges 7 Ranges
Measured Current Accuracy 0.5% of the range, 50pA max
Measured Current Resolution 0.015% of range, 1.5 pA
Input Impedance >10 TΩ
Input Bias Current 1pA Max
Computer Interface / Communication USB
Channel Cable Length 0.8 meters
Power Supply / Requirements 12V DC / 100V – 240V AC
Weight 285 grams
Physical Dimensions 181mm * 91.5mm * 42mm
Operating temperature range 0 to 50°C
PC Software Available with a lifetime license
Bandwidth Up to 4 MHz
Max. data acquisition rate 1 KHz
ADC/DAC Resolution 16-bit
Slew Rate (No Load) 3.5 V/µs
Maximum ADC Sampling Speed 5,00,000 samples/sec
