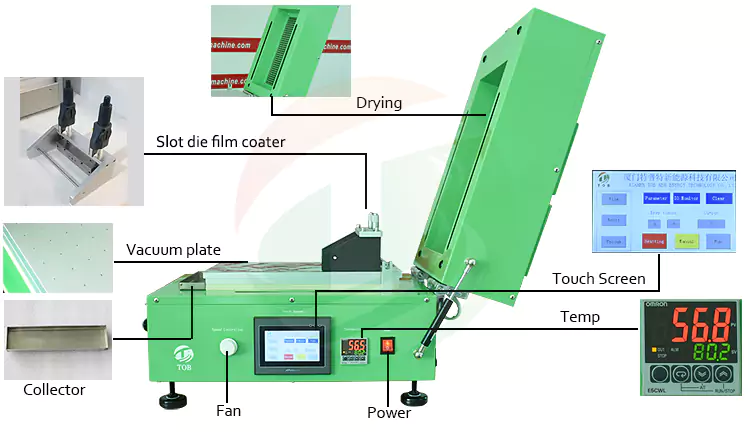

Film Coating Machine with heating arrange and inbuilt vacuum
- High-precision slot die extrusion coating for superior uniformity

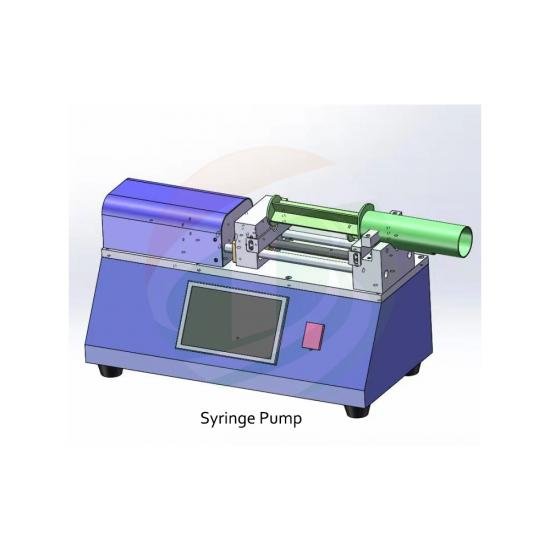

- Closed feeding system with an injection pump to reduce material waste
- Vacuum suction plate ensures wrinkle-free substrate fixation
- Large-area uniform heating for consistent drying and temperature stability
- Motor-driven coating stroke with adjustable speed (0.5–20 mm/s)
- Easy cleaning and disassembly of the die and feeding system
- Touchscreen PLC control for quick adjustment and recipe saving
- Suitable for glove-box operation; compact and space-saving
Product Description

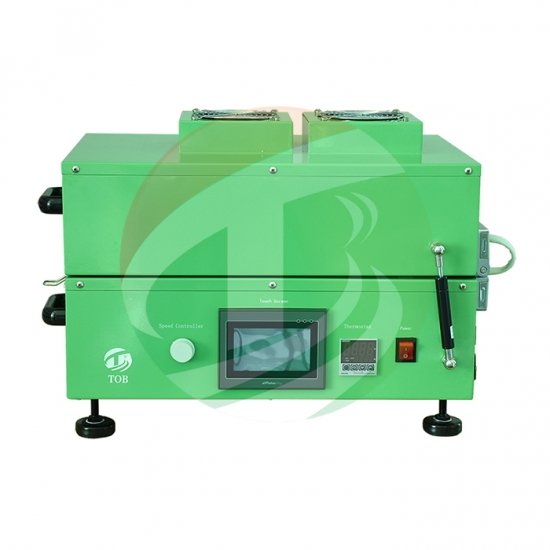

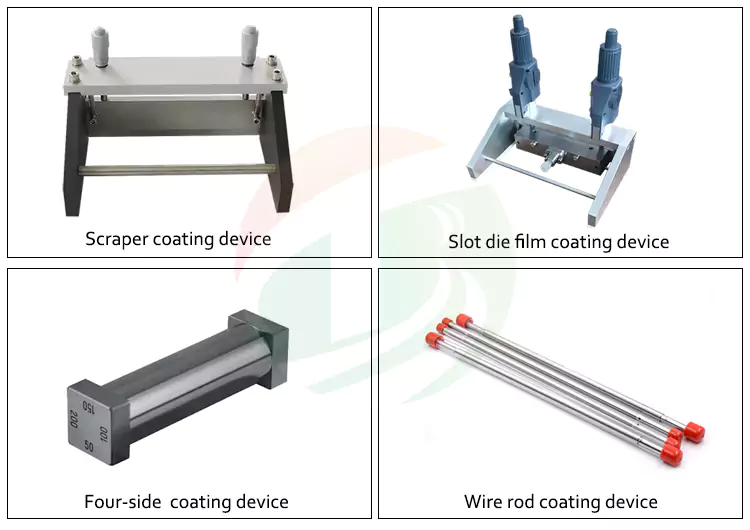

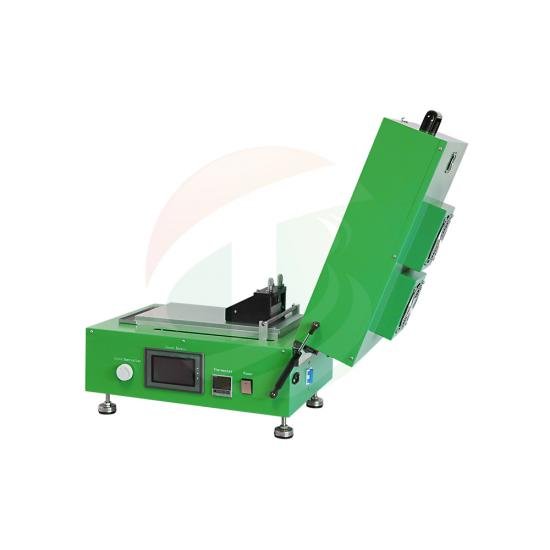

The Dtech-250 Desktop Slot Die Coating Machine is a precision laboratory coater designed for high-accuracy electrode coating in lithium-ion battery research. It supports slot die extrusion coating, along with optional scraper, four-side, and wire-rod coating methods. With its stable motor-driven system, vacuum-suction plate, and uniform heating capability, this coater ensures consistent, repeatable, and high-quality films for coin cell and pouch cell R&D. The compact desktop size and glove-box compatibility make it ideal for advanced materials laboratories.
|
Item |
Specification |
|
Model |
Dtech – 250 |
|
Voltage |
AC 110–220V, 50/60Hz, Single Phase |
|
Coating Method |

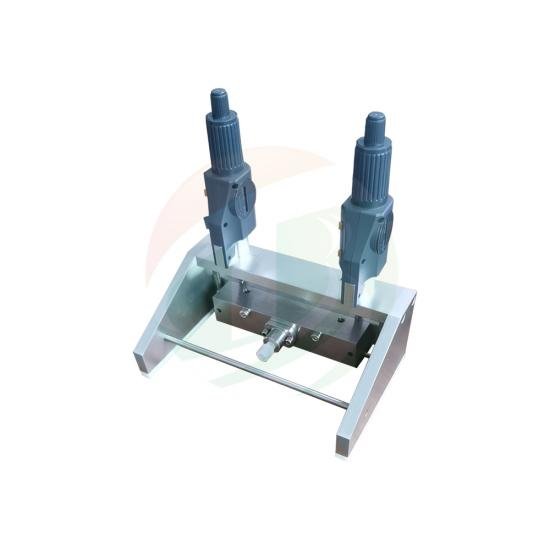

Slot die flat plate coating (with TOB-JY100 applicator) |
|
Coating Stroke |
~250 mm (step-less adjustable via touch screen) |
|
Drive Method |
Motor drive (speed adjustable) |
|
Coating Speed |
0.5–20 mm/s |
|
Vacuum Plate |
Aluminum plate with built-in oil-less vacuum pump |
|
Vacuum Plate Size |
L365 × W200 × H32 mm |
|
Film Applicator Thickness Range |
0–5 mm adjustable |
|
Injection Volume |
Stainless steel syringe, max 60 ml |
|
Feeding Speed |
0.05–5 mm/s (syringe piston speed) |
|
Coating Accuracy |
±3 μm (optional 1 μm digital meter) |
|
Heating System |
RT–130°C, ±1°C accuracy |
|
Machine Size |
L560 × W420 × H370 mm |
|
Machine Weight |
~65 kg |
|
Included |
Built-in oil-less vacuum pump |
