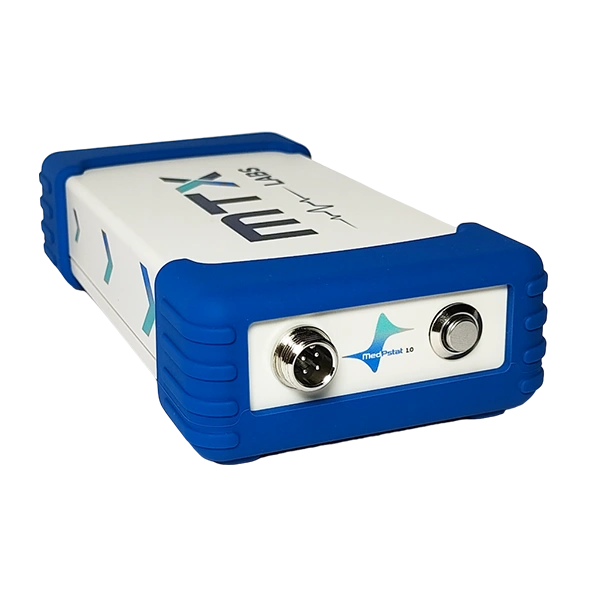

Handheld Potentiostat, Electrochemical Analyzer (MedPstat 1.0)
- Handheld Affordable & Precision Potentiostat
- Applied Potential Range: ± 2.4 V
- Max Current Range: 30 mA / 100 mA
- USB Communication
- Software for PC Data acquisition & plotting
Model Type:
MedPstat 1.0 (Basic) 30 mA
MedPstat 1.0 (Advance) 100 mA
MedPstat 1.0 (EC Kit) with Cell Setup
MedPstat is a Handheld Affordable & Precision Potentiostat, with a wide range ± 2.4 V, 100 mA. Optimum for electrochemistry learning & research applications. Comes with high-quality dummy cell for learning & calibration applications and compatible software for PC, Data acquisition & plotting.
| Parameter | Specification |
|---|---|
| Electrochemical Methods | CV, LSV, ChronoAmp, OCP, DPV, SWV |
| Channels Per Unit | 1 |
| Applied potential range | ±2.4 V |
| Applied Potential Accuracy | 0.1% of setpoint, 1mV Max |
| Applied Potential Resolution | 76 µV |
| Measured Potential Accuracy | 0.1% of setpoint, 1mV Max |
| Measured Potential Resolution | 156 µV |
| Compliance Voltage | ±8 V |
| Maximum Current | 30mA |
| Current ranges | 5 Ranges |
| Measured Current Accuracy | 0.1% of range, 1nA max |
| Measured Current Resolution | 0.015% of range, 0.156nA |
| Input Impedance | >10 TΩ |
| Input Bias Current | 1pA Max |
| Computer Interface | USB |
| Channel Cable Length | 0.8 meters |
| Power supply | 12V DC |
| Power Supply Requirements | 100V – 240V AC |
| Weight | 285 grams |
| Physical Dimensions | 181mm * 91.5mm * 42mm |
| Operating temperature range | 0 to 50°C |
| PC Software | Lifetime license |
| Bandwidth | up to 4 MHz |
| Max. data acquisition rate | 1 KHz |
| ADC/DAC Resolution | 16-bit |
| Slew Rate (No Load) | 3.5 V/µs |
| Max ADC Sampling Speed | 5,00,000 samples/sec |
