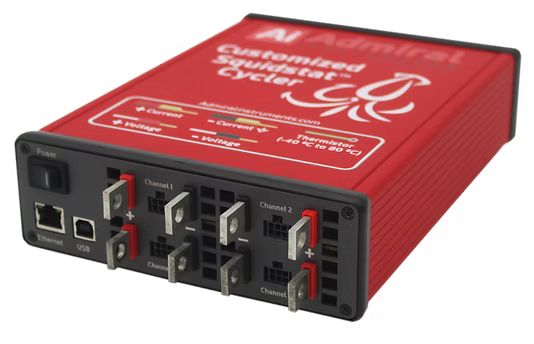

Squidstat Cycler – 4Ch5V60A
EIS from 10μHz to 10 kHz
0-5 V scan range
±60 A max current per channel
±240 A max current per unit
Accurate down to 750 μA
Thermistor, −55 to 80 °C
Item Number: CY-1X-K10-4Ch5V60A-CS
Typical Lead Time: 40 Business Days ARO
Warranty Period: 2-years
Serial Numbers: 1630-ongoing
-
Four-channel battery cycler with FRA
-
Current range: ±60 A max
-
Voltage scan range: 0-5 V
-
EIS frequency range: 10 μHz – 10 kHz
-
Compatible with Windows, MacOS, and Ubuntu via the Squidstat User Interface software and Application Programming Interface
-
Multiple units can run simultaneously with other Squidstat models
-
The current range can be increased up to ±240 A by paralleling the channels
-
Made in USA
