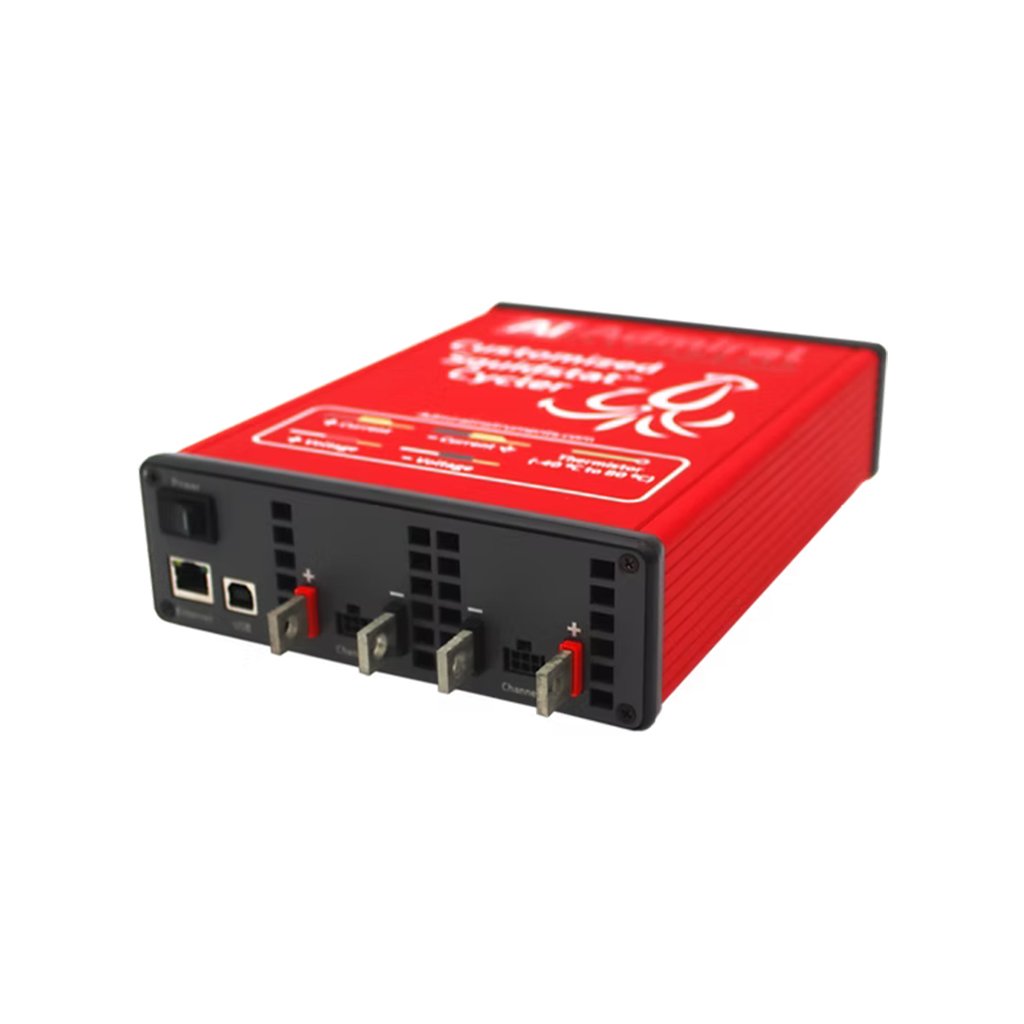

Squidstat Cycler – Customizable
EIS from 10μHz to 10 kHz
Up to ±60 V scan range
Up to ±60 A max current per channel
±1000 A max current per unit
Accurate down to 750 μA
Thermistor, −55 to 80 °C
-
Number of channels (X): from 2 to 40 channels with increments of 2
-
Rack mount: solutions available for high channels count configurations
-
Voltage (Y): from +5 V to +60 V with increments of 5 V per channel
-
Current (Z): from ±5 A to ±60 A with increments of 5 A per channel
-
Power: 3 kW max power per channel with 9 kW max power per unit
-
Channel cabling: 1m standard, with 2m and 3m options available
