Stainless Steel Coin Cell Case
- High-quality SS316 stainless steel for long-lasting performance
- Full kit includes case, spacer, and spring for easy assembly
- Reliable electrical contact and corrosion resistance
- Suitable for a wide range of battery chemistries
- Precision engineering ensures consistent results
Product Description

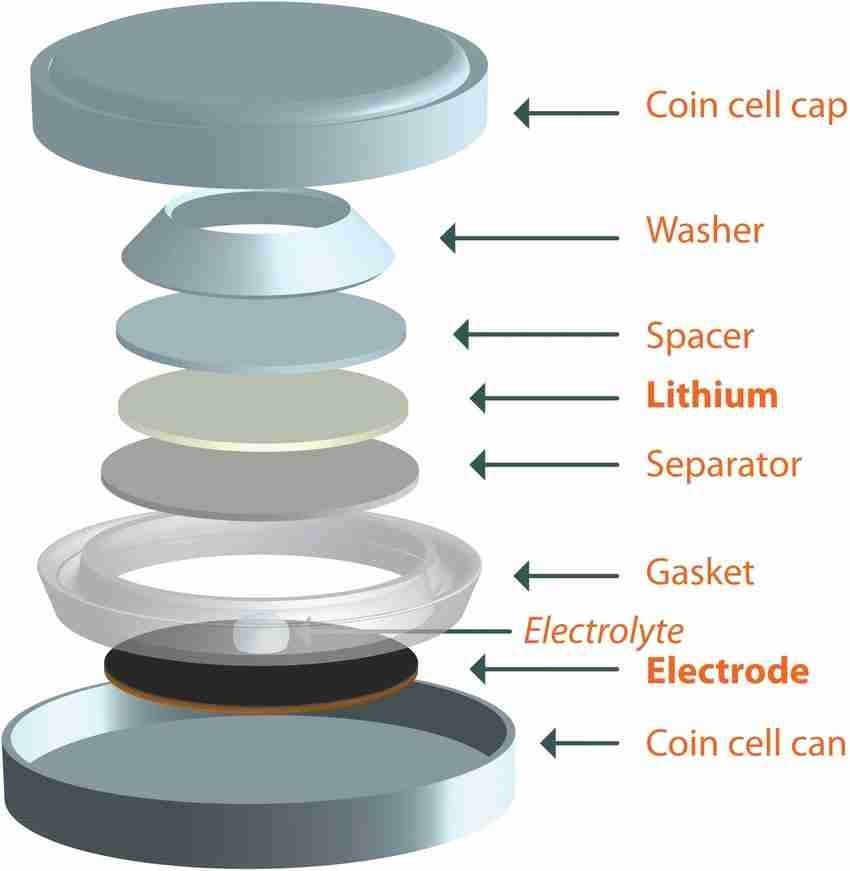

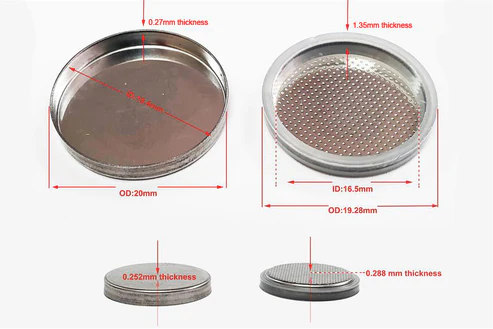

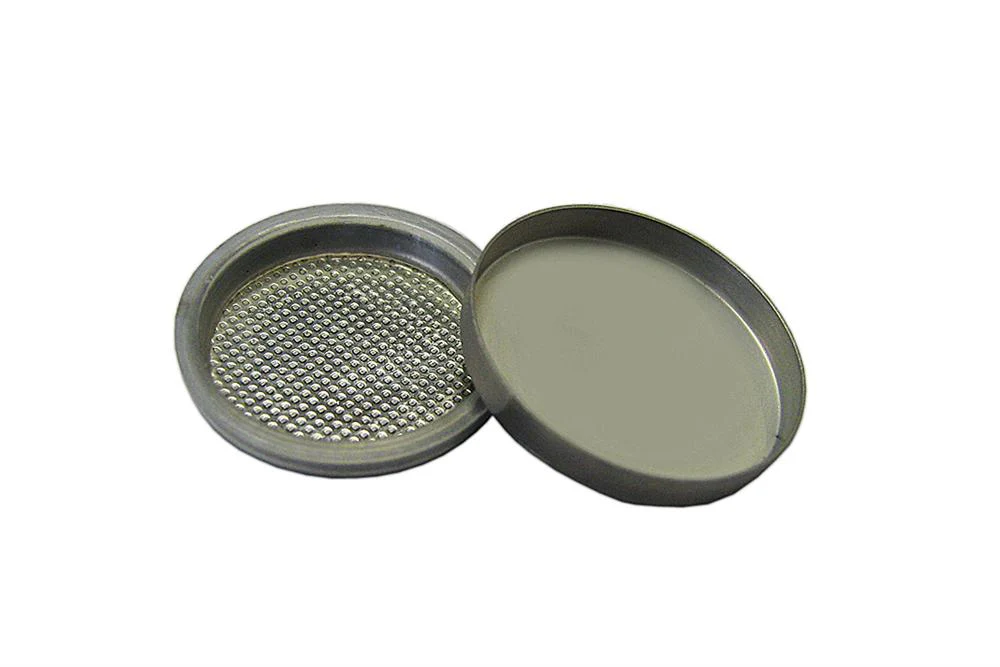

The CR2032 Coin Cell Case Set is manufactured from premium316L stainless steel, offering excellent corrosion resistance, mechanical strength, and long-term durability for battery researchapplications. Each set includes a cathode case, anode case, wavespring, and spacer, all precision-made from high-quality SS316Lmetal to ensure reliable cell assembly and consistent performance. A PP gasket is pre-installed on the anode case, providing effectivesealing and simplifying the assembly process.
|
Specifications |
|
|
Parameter |
Details |
|
Material |
Stainless Steel 304 / 316 |
|
Components Included |
Positive Case, Negative Case, 1mm Spacer, Conical Spring |
|
Surface Finish |
Smooth, corrosion-resistant |
|
Electrical Properties |
High conductivity, low resistance |
|
Compatibility |
Li-ion, Na-ion, and other common battery types |
|
Application |
Battery R&D, prototype assembly, laboratory testing |
|
Standards |
Industry-standard coin cell dimensions |
Additional Information:
|
Choose Spacers (Diameter*Thickness) |
15.5*0.5mm, 15.8*0.5mm, 15.8*1.0mm, 16.2*0.5mm, 16.2*0.8mm |
|
Choose Springs (Diameter*Thickness) |
15.4*1.0mm (Wave), 15.4*1.1mm (Washer), 13.0*1.8mm (Washer) |
