STC 2 Two Electrode Split Test Cell ​
STC 2 Two Electrode Split Test Cell ​ 01
STC 2 Two Electrode Split Test Cell ​ 02
STC 2 Two Electrode Split Test Cell ​ 03
STC 2 Two Electrode Split Test Cell ​ 04
STC 2 Two Electrode Split Test Cell ​ 05
STC 2 Two Electrode Split Test Cell ​ 06
STC 2 Two Electrode Split Test Cell ​07

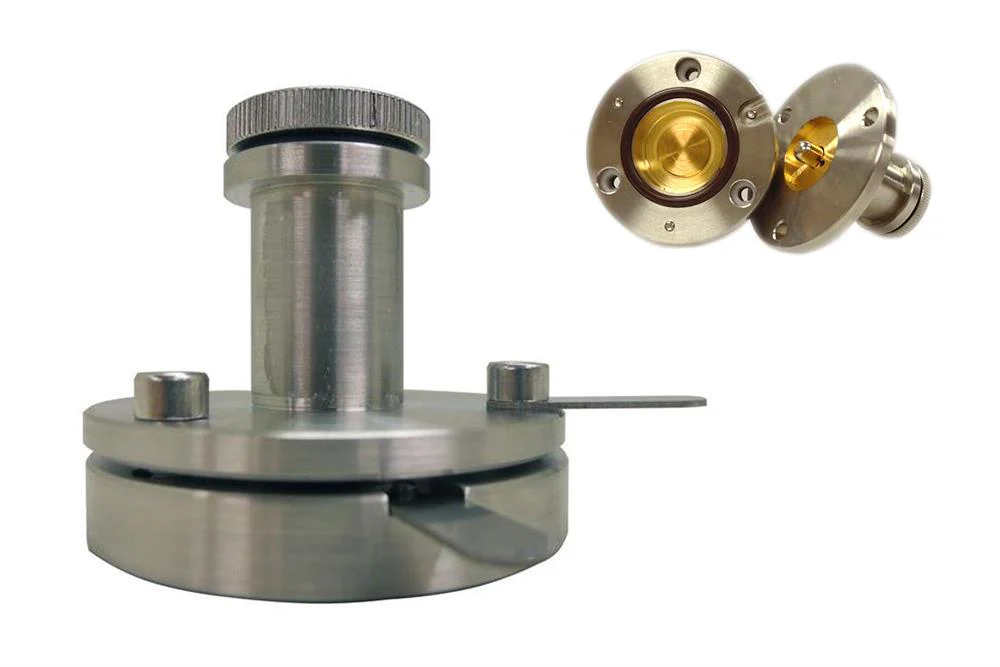

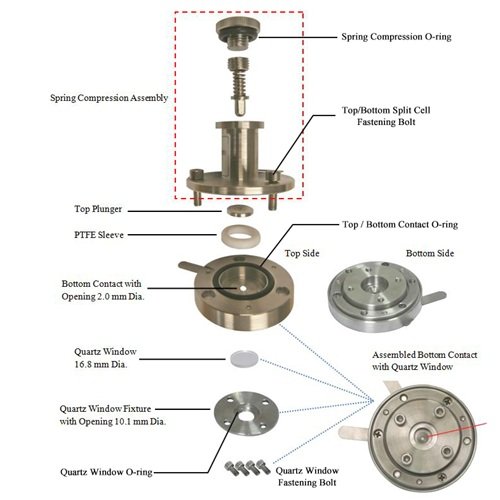

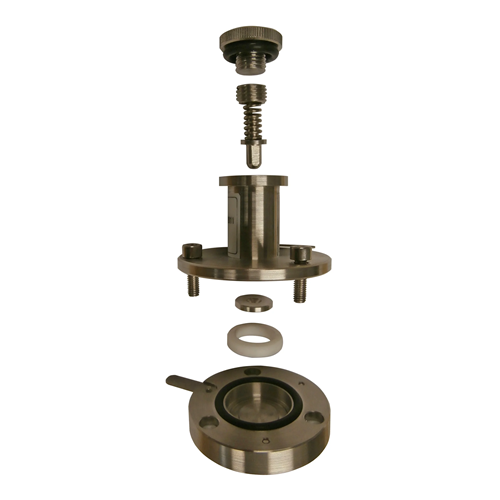

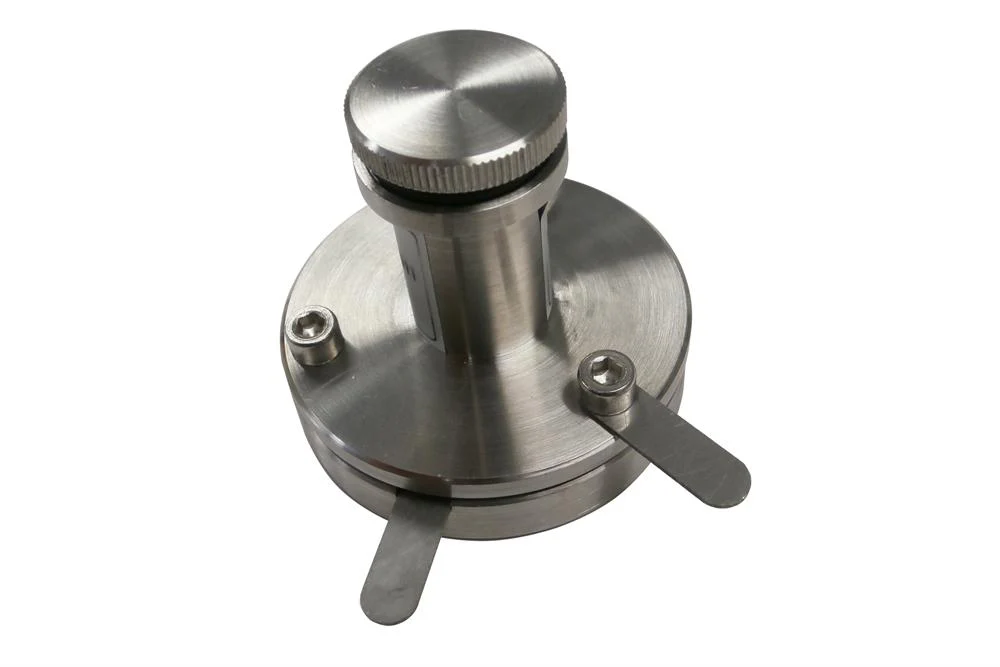

STC-2 Two Electrode Split Test Cell ​

  • Key Features & Benefits: Wide compatibility with electrodediameters from 5 – 24mm​
  •  Durablestainless steelconstruction with corrosion-resistant PTFE seals ​
  • Adjustable thickness from 1-5mm for various material setups ​
  • High-temperature resistant up to 200°C ​
  • Compact glove-box-friendly design for easy handling​

​

Categories , , ,

The STC-2 Two-Electrode Split Test Cell is a versatile and durable research tool designed for battery material development and electrode testing. Built with a fully stainless steel structure and chemically resistant components, it enables quick and reliable performance evaluation of electrode materials in a controlled environment. Ideal for academic research, quality control, and R&D laboratories working on rechargeable battery technologies.



Specification ​

Model ​

STC-2 (Two Electrode) ​

Body Material ​

Stainless Steel ​

Sealing Material ​

PTFE O-rings ​

Guide Sleeve Material ​

PTFE ​

Compatible Electrode Diameters ​

5, 10, 12, 15, 19, 20, 24 mm ​

Adjustable Thickness Range ​

1 – 5 mm ​

Maximum Operating Temperature ​

200°C ​

Included Guide Sleeve & Platen Sizes ​

19 mm, 20 mm, 24 mm (1 piece each) ​

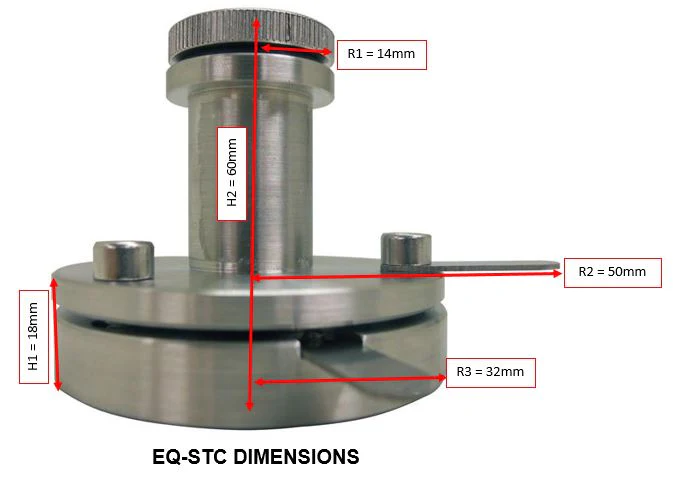

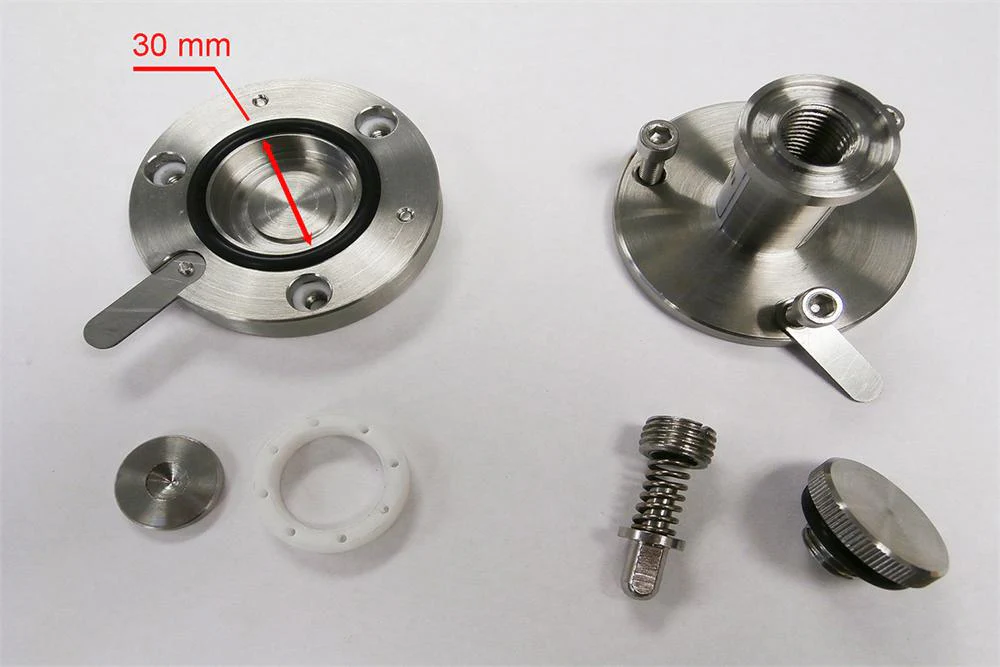

Overall Outer Diameter ​

30 mm ​

Primary Application ​

R&D testing for rechargeable battery materials ​
