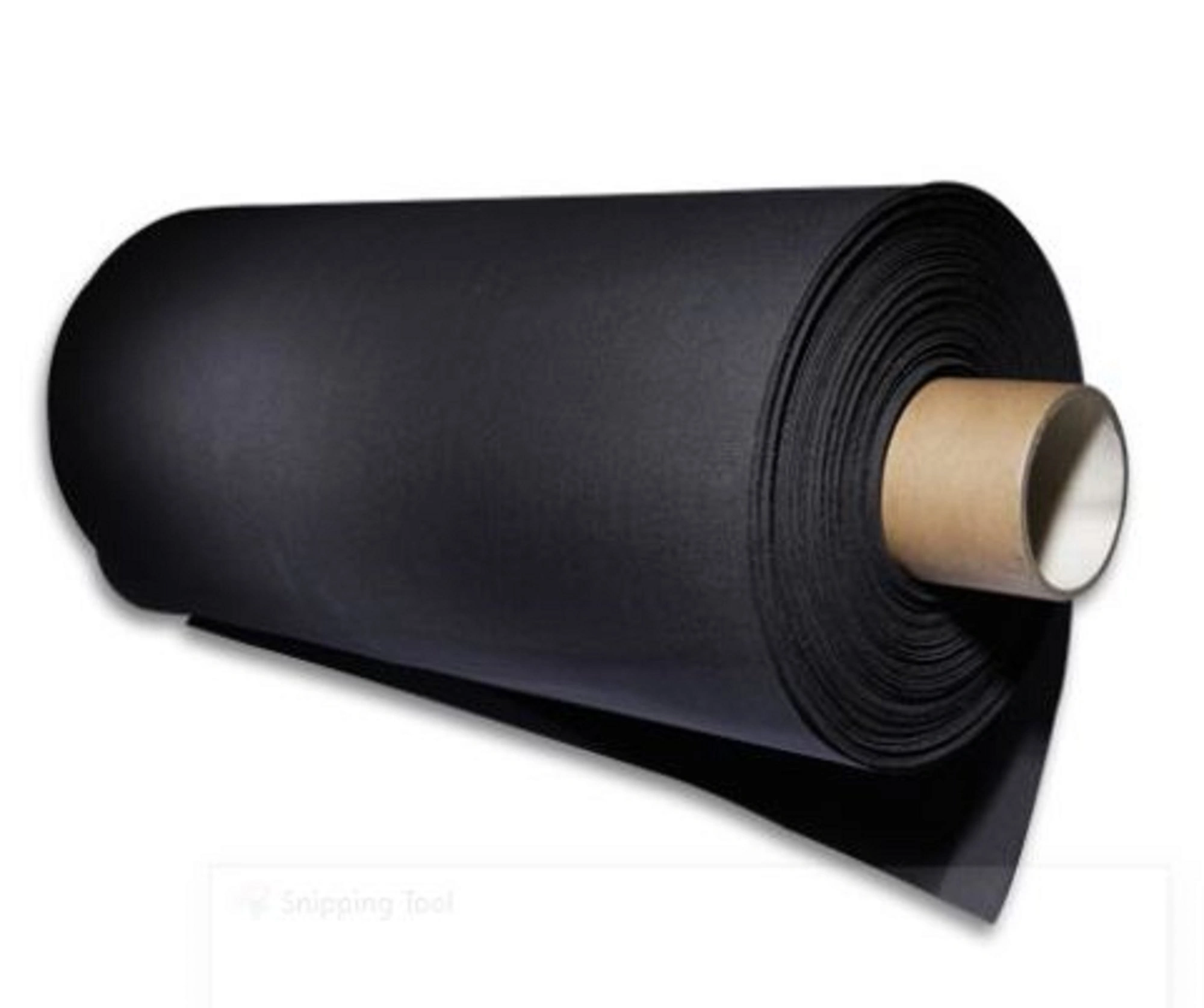

Conducting Carbon Cloth

Conducting Carbon Cloth

Conducting Carbon Cloth is a versatile, flexible fabric made with carbon-based fibers that provide excellent conductivity. Perfect for use in electronic applications, energy storage devices, and wearable technology, this cloth is durable, lightweight, and easy to integrate into various projects. It offers a reliable solution for creating conductive pathways, sensors, and other innovative designs requiring efficient electrical performance.

Specifications:

  • Length: 200 mm
  • Width: 200 mm
Categories , , ,

Description

Elevate your fuel cell performance with our advanced CT Series WovenCarbon Cloth Gas Diffusion Layers (GDLs). Engineered for superior durabilityand flexibility, this cloth provides an exceptional balance of conductivity, gasdiffusion, and mechanical resilience. ​ Unlike conventional materials, our woven structure offers unique advantagesfor applications requiring conformability and robust physical properties. Itserves as a cost-effective, high-performance alternative, making it the idealchoice for a wide range of electrochemical applications where reliabilitycannot be compromised.

  • Length: 200mm
  • Width: 200mm



Specification ​

Unit ​

W0S1001 ​

W0S1011 ​

W1S1011 ​

Product Type ​

​-

Substrate Only ​

Substrate Only ​

With MPL & PTFE ​

Material ​

–

Woven Carbon Cloth ​

Woven Carbon Cloth ​

Woven Carbon Cloth + MPL ​

Thickness ​

mm ​

0.30 ​

0.36 ​

0.41 ​

Basic Weight ​

g/m² ​

110 ​

130 ​

200 ​

Through-Plane Resistance ​

mΩ·cm² ​

< 5 ​

< 5 ​

< 13 ​

Air Permeability (Gurley) ​

sec ​

< 10 ​

< 10 ​

< 55 ​

Tensile Strength (MD) ​

N/cm ​

8 ​

10 ​

10 ​

Form Factor ​

​

Roll-to-Roll ​

Roll-to-Roll ​

Roll-to-Roll ​
