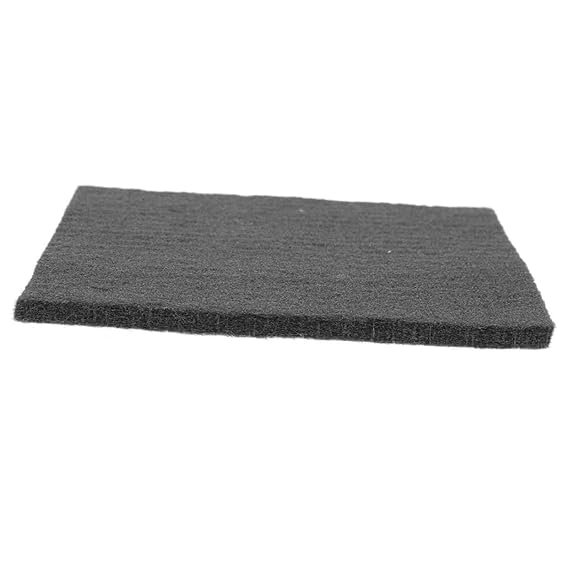

Graphite Felt
- Exceptional Thermal Stability
- Chemical Resistance
- Excellent Electrical Conductivity
- Excellent Insulation Properties
- Long Service Life
- Flexible and Conformable
Product Description

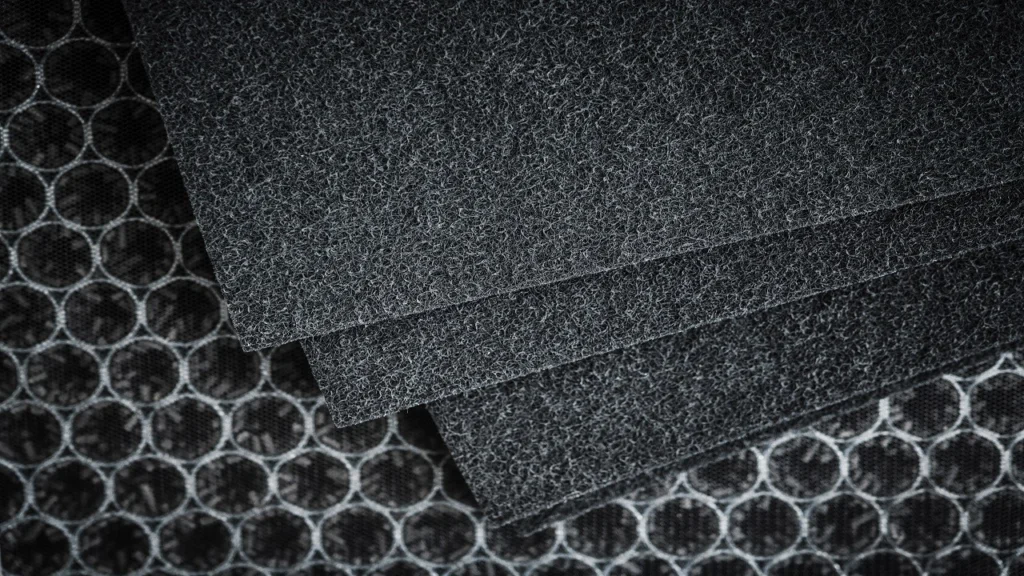

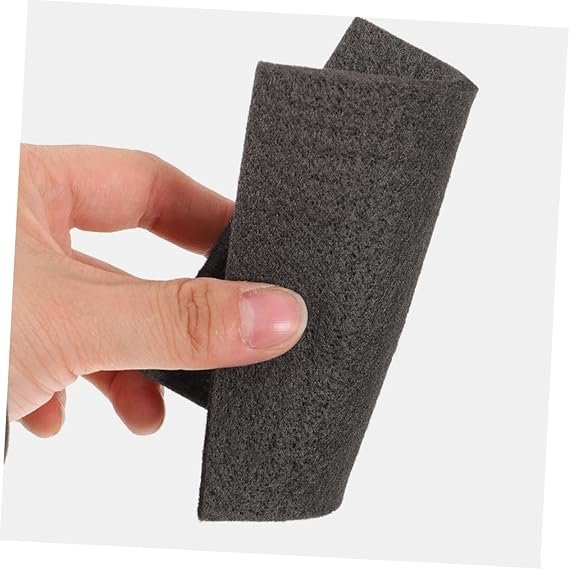

Graphite Felt is a premium rayon-based material engineered forhigh-temperature and demanding electrochemical applications.Featuring a unique hexagonal structure, excellent flexibility, andsuperior thermal stability, it is ideal for advanced industrialprocesses and energy storage systems, delivering the reliabilityand efficiency required for high-temperature furnaces and next-generation flow batteries.
|
Specifications |
||||
|
Parameter |
GF100 |
GF065 |
GF020 |
GF030 |
|
Thickness (mm) |
10 |
6.0-8.0 |
1.5-3.5 |
2.0-4.0 |
|
Weight (g/m²) |
500-800 |
590 |
– |
– |
|
Carbon Content (%) |
98 |
98 |
98 |
98 |
|
Thermal Conductivity |
0.1 |
0.1 |
– |
– |
|
Tensile Strength (MPa) |
0.2 |
0.12 |
– |
– |
|
Voltage Loss @500mA/cm² & 20N/cm² |
– |
– |
35 |
35 |
