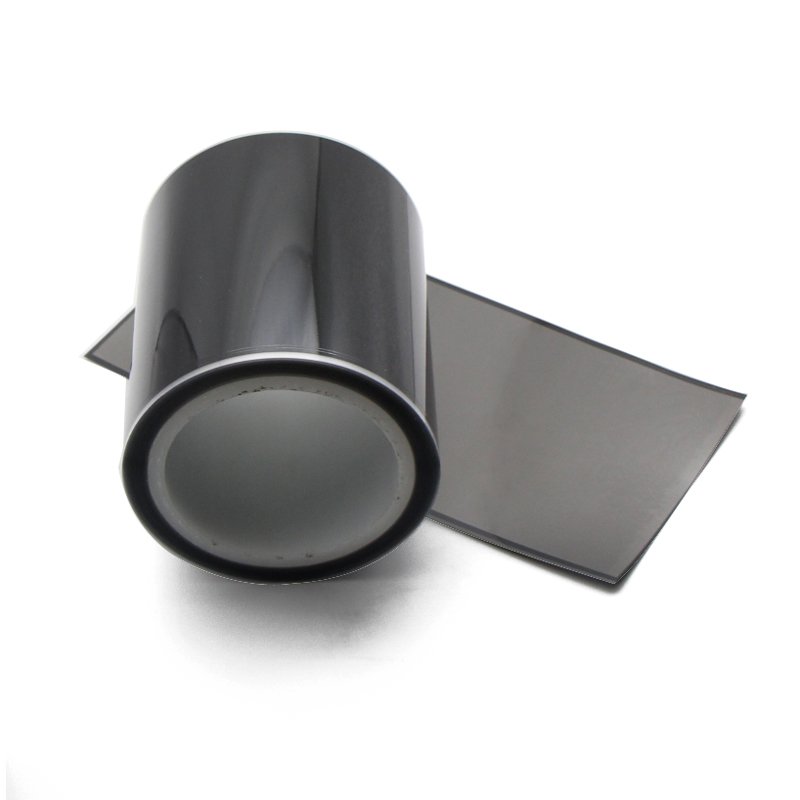

LGS1500 High-Performance Synthetic Graphite Sheet
- Exceptional thermal conductivity (up to 1500 W/m·K)
- Ultra-thin options from 0.017mm to 0.04mm
- Wide operating temperature (-40°C to 400°C)
- Lightweight and flexible design
- Easy integration with adhesive options
Product Description
Ultra-thin synthetic graphite sheets delivering superior thermal conductivity up to 1500W/m·K. Perfect for smartphones, wearables, and electronics requiring efficient heat dissipation in compact spaces.
|
Specifications |
|||
|
Parameter |
LGS1500-017 |
LGS1500-025 |
LGS1500-040 |
|
Thickness |
0.017 mm |
0.025 mm |
0.040 mm |
|
Thermal Conductivity |
1500 W/m·K |
1400 W/m·K |
1300 W/m·K |
|
Density |
2.1 g/cm³ |
2.1 g/cm³ |
2.1 g/cm³ |
|
Operating Temperature |
-40°C to 400°C |
-40°C to 400°C |
-40°C to 400°C |
|
Standard Formats |
Sheet: 110×225mm |
– |
– |
|
Certification |
UL 94V0 |
– |
– |
