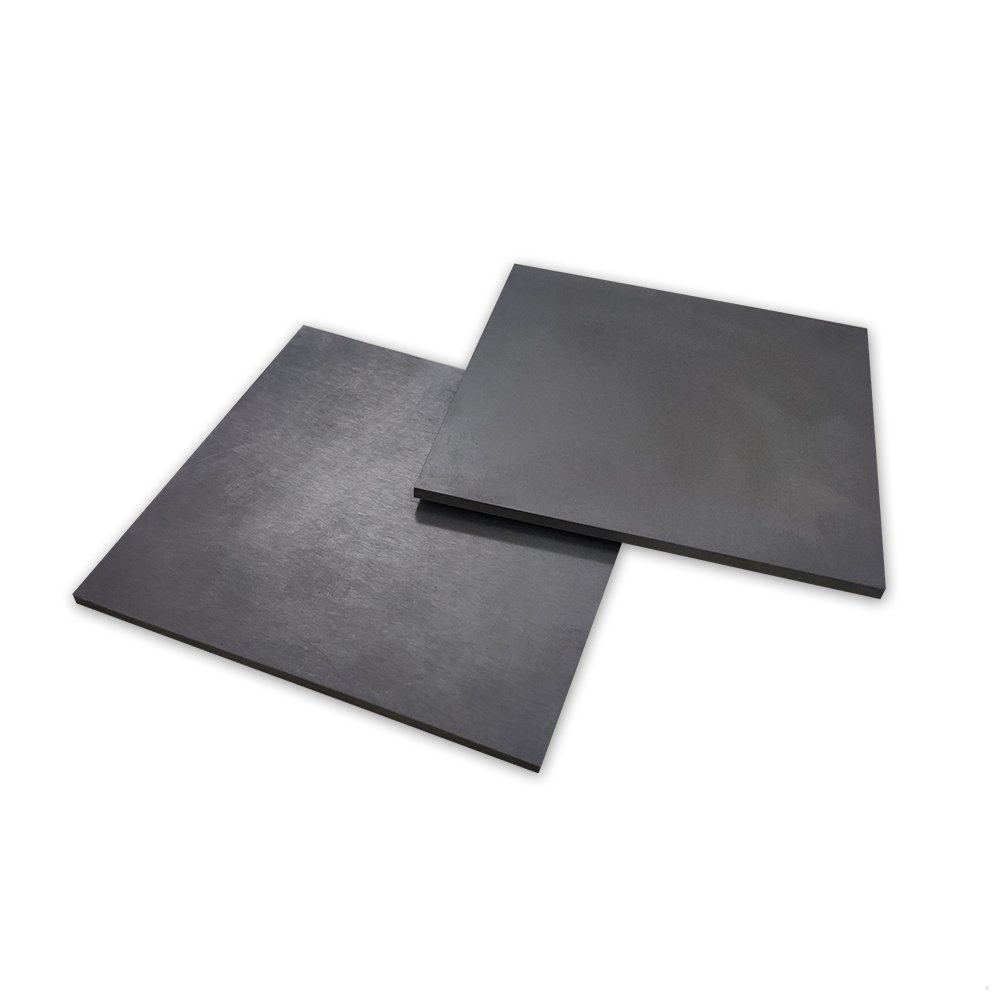

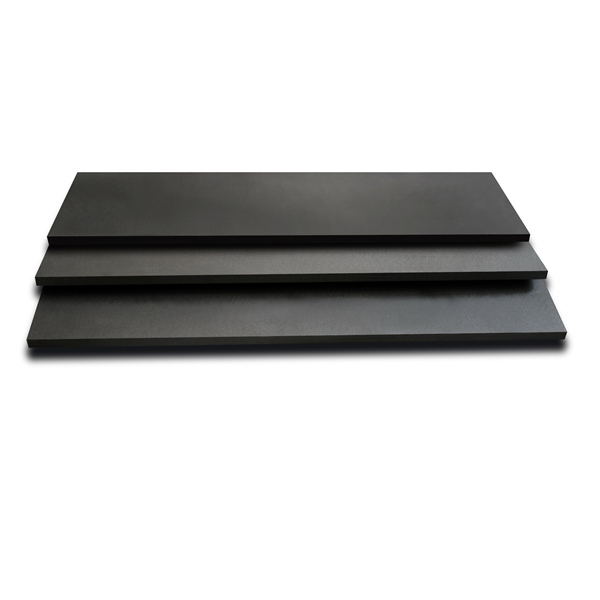

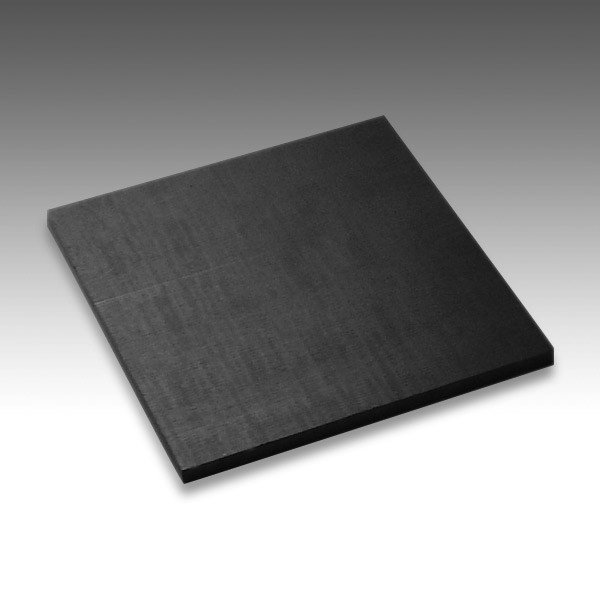

IGS Graphite
- Exceptional thermal conductivity
- Superior Mechanical Strength
- High Electrical Conductivity
- Oxidation resistance
Product Description
IGS Graphite is a high-end isostatic graphite designed for demanding applications that demand dependability under harsh conditions, outstanding mechanical strength, and outstanding thermal management. It is perfect for sophisticated industrial and semiconductor operations becauseof its ultra-fine grain structure, which combines strong in-plane heat conductivity with through-plane insulation. IGS Graphite is made to perform better than traditional structural graphite, meeting your most demanding mechanical and thermal requirements.
|
Specifications |
|
|
Parameters |
Value |
|
Product Name |
iGS Graphite (Isostatic Graphite) |
|
Thickness |
0.025 mm (iGS025), 0.04 mm (iGS040) |
|
Standard Sheet Size |
220x220mm (iGS025), 220x260mm (iGS040) |
|
Density |
1.8 – 2.1 g/cm³ |
|
Electrical Conductivity |
> 10,000 S/cm |
|
Extensional Strength (x, y) |
15 – 30 MPa |
|
Temperature Range |
-40 °C to +400 °C |
|
In-Plane Thermal Conductivity (x, y) |
1250 – 1500 W/mK |
|
Through-Plane Thermal Conductivity (z) |
7.5 – 10 W/mK |
