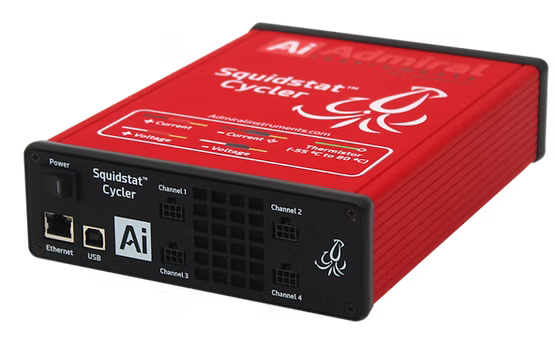

Squidstat Cycler – Base Model
EIS from 10μHz to 10 kHz
0-5 V scan range
±5 A max current per channel
±20 A max current per unit
Accurate down to 750 μA
Thermistor, −55 to 80 °C
Item Number : CY-1X-K10-BM-CS
Typical Lead Time: 20 Business Days ARO
Warranty Period: 2-years
Serial Numbers: 1630-ongoing
-
Four-channel battery cycler with FRA
-
Current range: ±5 A max
-
Voltage scan range: 0-5 V
-
EIS frequency range: 10 μHz – 10 kHz
-
Compatible with Windows, MacOS, and Ubuntu via the Squidstat User Interface software and Application Programming Interface
-
Multiple units can run simultaneously with other Squidstat models
-
The current range can be increased up to ±20 A by paralleling the channels
-
Made in USA
